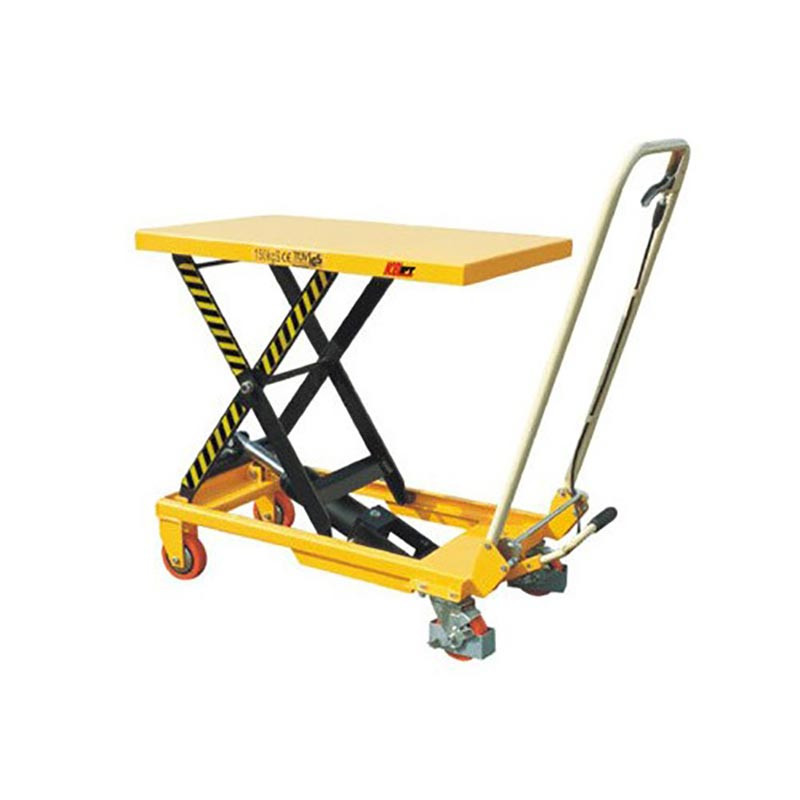

Ergonomically designed lifter/transporter features handy hydraulic foot pump to elevate formed-edge platform, reducing strain and fatigue, used for lifting, transporting, positioning,assembling,stacking and unstacking. Easy-to-operate brake keeps unit stationary while loading and unloading, while the lowering valve provides precise lowering.
Capacity | 150kg | |
Min.table height | 220mm | |
Max.table height | 720mm | |
Table Dimension | 700mm x 450mm x 36mm | |
Caster wheel | Φ100 x 25 | |
Foot pedal cycles to max.height | ≤28 | |
N.W | 46kg | |
Height of handle from the ground | 950mm |
TF15 | |
Capacity | 150kg |
Minimum Table Height | 220mm |
Maximum Table Height | 720mm |
Table Dimensions | 700mm x 450mm x 36mm |
Caster Wheel | Φ100 x 25 |
Foot pedal cycles to maximum height | ≤28 |
N.W | 46kg |
Height of Handle (from ground) | 950mm |
