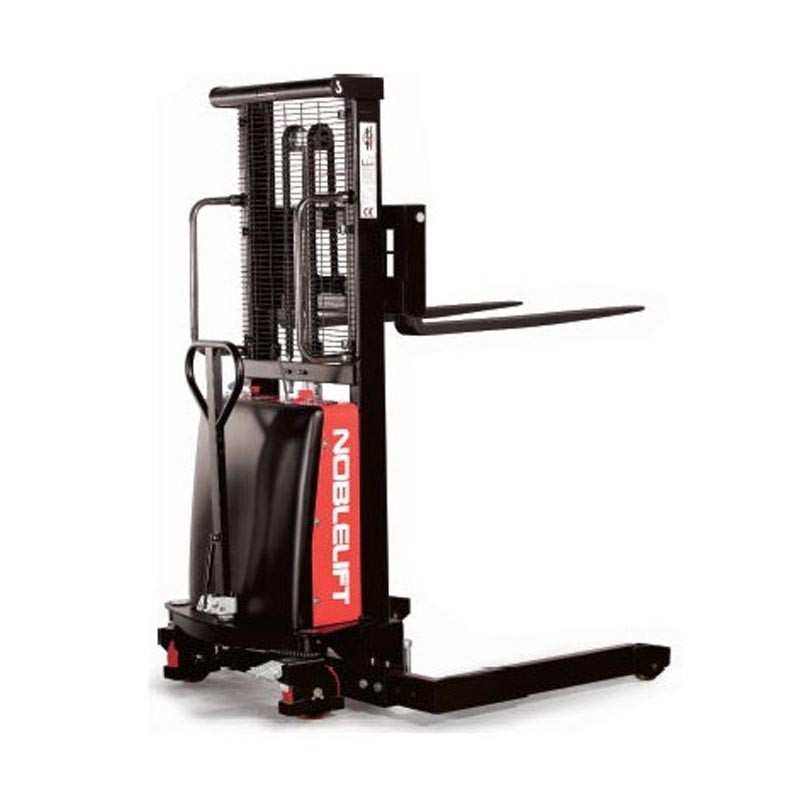

Straddle Leg Stacker SPN1025A-ES Semi Electric 2.5M Lift 1000KG

SKU SPN1025A-ES Category Semi Electric Stackers
£2,195.00
Tax excluded

The SPN1025A-ES has adjustable base legs for lifting loads, skids, racks, and objects with forks that adjust from side to side. It has a load capacity of 1000kg and a lifting height of 2.5m.

The SPN1025A-ES has adjustable base legs for lifting loads, skids, racks, and objects with forks that adjust from side to side to accommodate skid widths. It has a load capacity of 1000kg and a lifting height of 2.5m.

Main Features:

Adjustable base legs for lifting loads, skids, racks and objects.

Capacity 1000kg

Lifting Height 2500mm

Forks adjust from side to side to accommodate skid widths

Adjustable forks lower to the minimum height of 2 1/8".

Fork Length 1070mm

Fork Width 100mm

Sturdy and reliable mast made of rolled U-profiles. Hard chrome plated piston. Adjustable lifting chain. Powerful lift motor 2.1HP

Integrated 150AH maintenance free battery supplies strong power to effect frequent lifting task. An integrated charger facilitates easy and reliable charging of the integral battery.

On site assembly and training available

Full details can be downloaded in PDF format.

Please note purchase does not include assembly or training. If assembly or training is required please click on On Site Assembly or On Site Staff Training in Accessories at the top of the page.

Product Specifications

Capacity 1000kg
Drive Manual
Type Of Operation Pedestrian
Net Weight 690kg
Fork Dimensions 35/100/1150mm
Min. Fork Height 70mm
Max. Fork Height 2500mm
Straddle Leg Height 85mm
Lowered Mast Height 1845mm
Extended Mast Height 3094mm
Turning Radius 1580
Lift Speed (Laden/Unladen) 90/140 mm/s
Lowering Speed (Laden/Unladen) 120/100 mm/s
Lift Motor 1.5kw
Parking Brake Manual
N.W 690kg
