Pallet Truck Warehouse

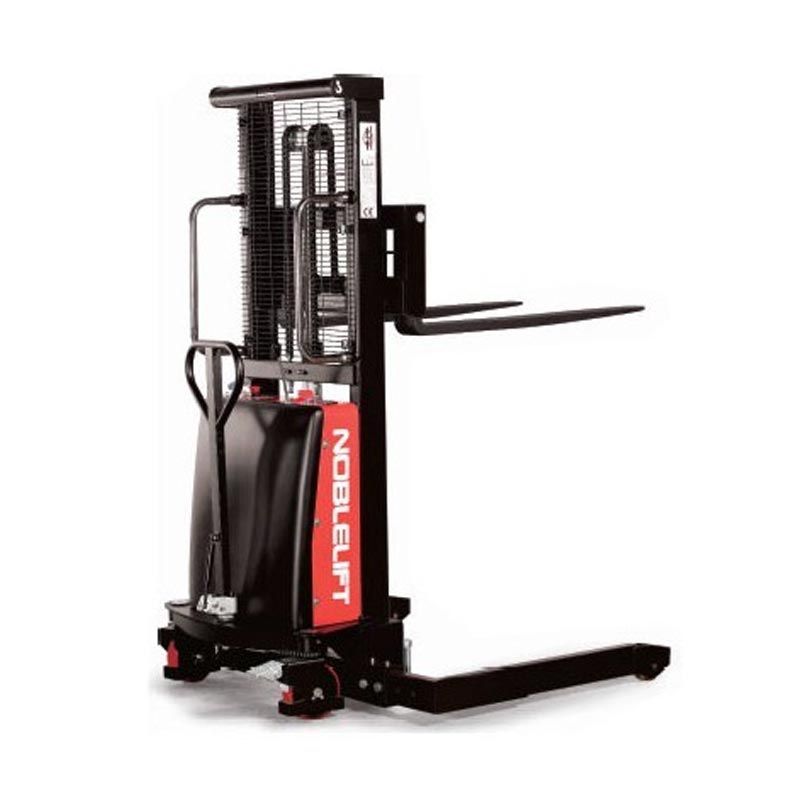

Straddle Leg Stacker SPN1016A-ES Semi Electric 1.6M Lift 1000KG

£2,095.00 Vat excl.

£2,514.00 Vat incl.

SPN1016A-ES

The SPN1016A-ES has adjustable base legs for lifting loads, skids, racks, and objects with forks that adjust from side to side. It has a load capacity of 1000kg and a lifting height of 1.6m.

More details

The SPN1016A-ES has adjustable base legs for lifting loads, skids, racks, and objects with forks that adjust from side to side to accommodate skid widths. It has a load capacity of 1000kg and a lifting height of 1.6m.

Main Features:

Adjustable base legs for lifting loads, skids, racks and objects.

Capacity 1000kg

Lifting Height 1600mm

Forks adjust from side to side to accommodate skid widths

Adjustable forks lower to the minimum height of 2 1/8".

Fork Length 1070mm

Fork Width 100mm

Sturdy and reliable mast made of rolled U-profiles. Hard chrome plated piston. Adjustable lifting chain. Powerful lift motor 2.1HP

Integrated 150AH maintenance free battery supplies strong power to effect frequent lifting task. An integrated charger facilitates easy and reliable charging of the integral battery.

On site assembly and training available

Full details can be downloaded in PDF format.

Please note purchase does not include assembly or training. If assembly or training is required please click on On Site Assembly or On Site Staff Training in Accessories at the top of the page.




    SPN1016A-ES
    Capacity 1000kg
    Drive Manual
    Type Of Operation Pedestrian
    Net Weight 630kg
    Fork Dimensions 35/100/1150mm
    Fork Width 100mm
    Width Between Forks 0-600mm
    Min. Fork Height 70mm
    Max. Fork Height 1600mm
    Straddle Leg Height 85mm
    Lowered Mast Height 2044mm
    Extended Mast Height 2044mm
    Turning Radius 1580mm
    Lift Speed (Laden/Unladen) 90/140 mm/s
    Lowering Speed (Laden/Unladen) 120/100 mm/s
    Lift Motor 1.5kw
    Parking Brake Manual
    N.W 630kg (Inc Battery)
    Height of Handle (from ground) 1156mm
