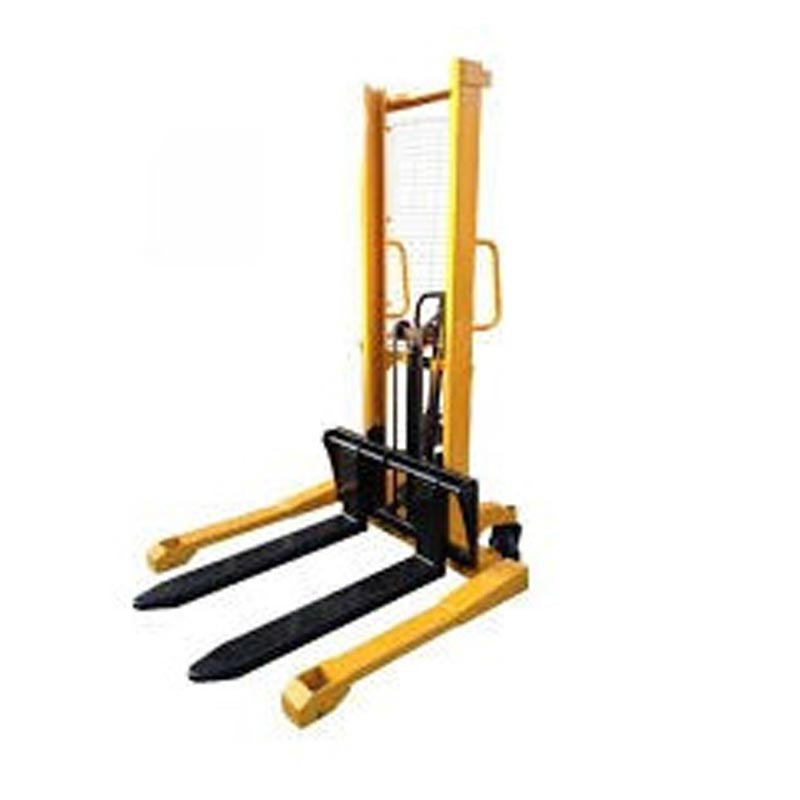

Our Hydraulic Stackers make moving, lifting, loading and unloading simpler and quicker. Pallet Truck Warehouse offer rugged & reliable stackers; Stackers are a step up from the traditional Pallet Truck and take the burden out of lifting pallets as well as moving them. They are an economical alternative to a forklift truck and - because of their smaller size and weight - can be used in smaller spaces. Ideal for warehousing and light manufacturing applications.
Hand and Foot Pump Operation
On site assembly and training available
Please note purchase does not include assembly or training. If assembly or training is required please click on On Site Assembly or On Site Staff Training in Accessories at the top of the page
Suitable for EURO, CHEP and UK sized pallets when loading from narrow edge only
Model | SFH1016AG | |||
---|---|---|---|---|
Capacity | 1000kg | |||
Lifting Height Max. | 1600mm | |||
Lifting Height Min. | 70mm | |||
Fork Length | 915mm | |||
Fork Width | 100mm | |||
Outer width of forks | 220mm-850mm | |||
Base Legs I.D. | 915mm-1220mm | |||
Base Legs O.D. | 1100mm-1370mm | |||
Overall Length | 1420mm | |||
Overall Width | 1100mm-1370mm | |||
Overall Height | 2020mm | |||
Load Center | 500mm | |||
Rear Caster Dia. | 180mm | |||
Front Wheel Dia. | 127mm | |||
Rear Wheel Dia. | 180mm | |||
Wheel Type | 2 Rigid,2 Swivel | |||
Shipping Weight | 350kg |
