Pallet Truck Warehouse

Forklift Extending Jib

£830.00 Vat excl.

£996.00 Vat incl.

  • IEJ-1.0-OP
  • IEJ-1.5-OP
  • IEJ-2.0-OP
  • IEJ-3.0-OP
  • IEJ-4.0-OP

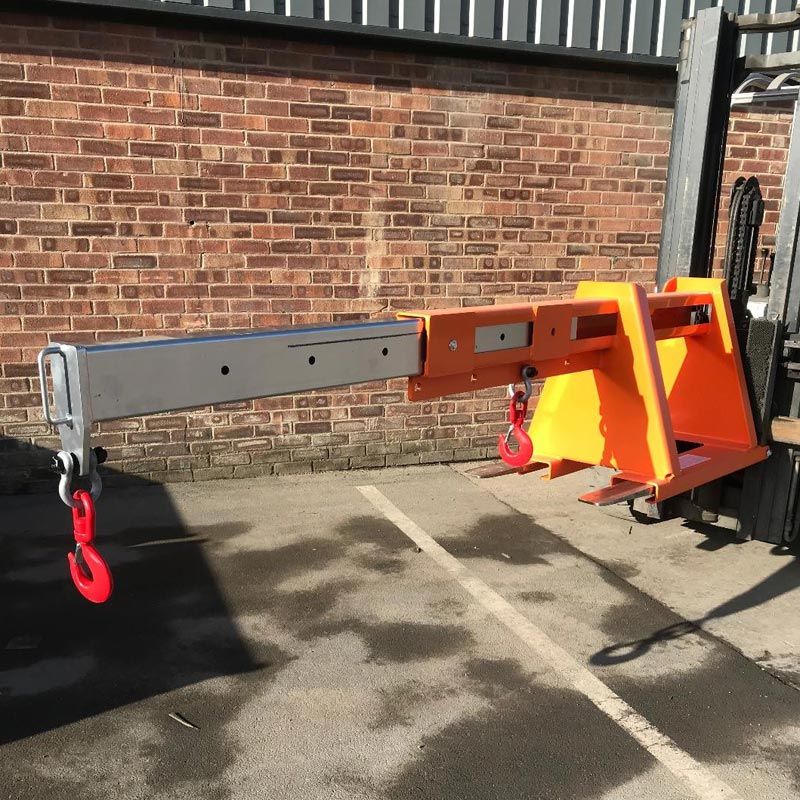

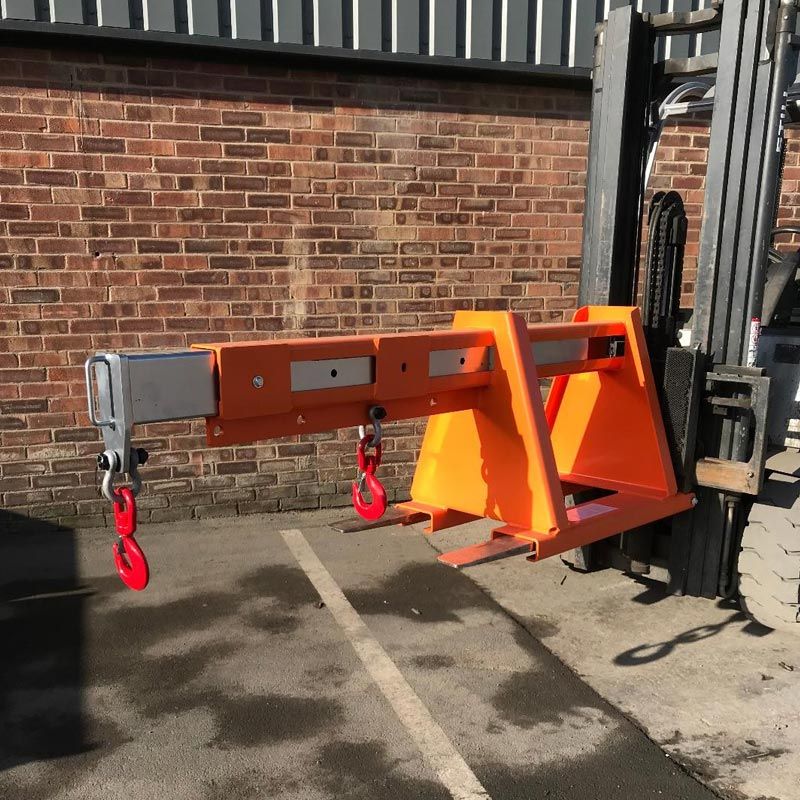

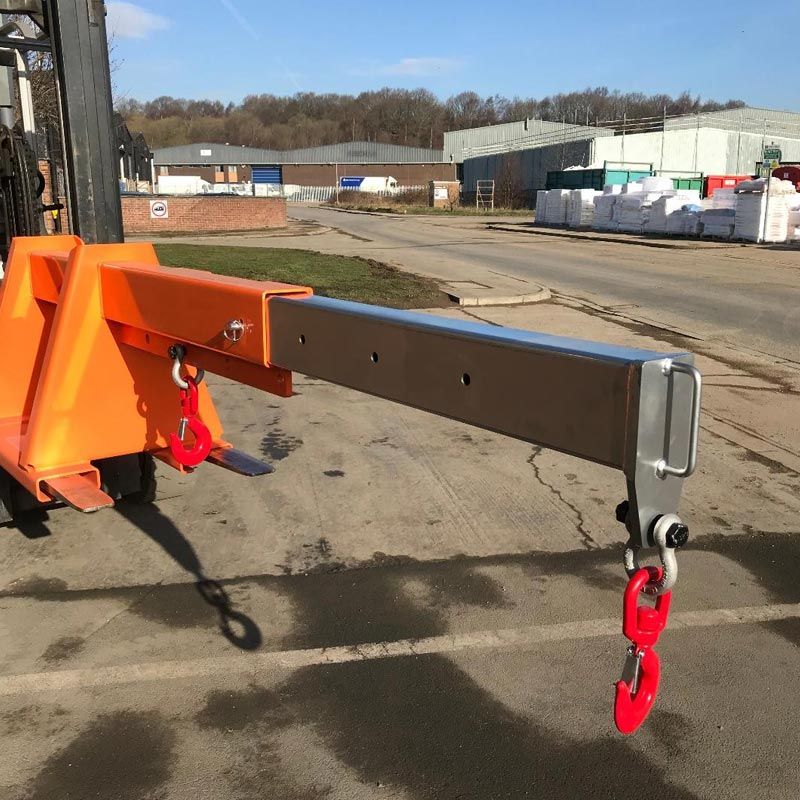

The Fork Mounted Extending Jib allows the movement of long and awkward loads from inaccessible locations with up to 9 different lifting positions and with the added benefit of two hooks and two shackles so as to ‘cradle’ your load.

More details

The Fork Mounted Extending Jib allows the movement of long and awkward loads from inaccessible locations with up to 9 different lifting positions and with the added benefit of two hooks and two shackles so as to ‘cradle’ your load.

Standard Features

Multi hook positioning from 1000mm to 3000mm load centres
Supplied complete with 2 No swivel hooks and bow shackles
Maximum fork section 150mm x 50mm at 435mm centres
Zinc plated heel pins for safe attachment to truck
Painted bright orange for safety



Model Capacity (kg) at Centres (mm) Weight  Centre of Gravity
  1000mm
1250mm  1500mm  1750mm  2000mm  2250mm  2500mm  2750mm  3000mm
IEJ-1.0 1000kg 900kg 800kg 700kg 600kg 500kg 400kg 300kg 200kg 175kg 670-1010mm
IEJ-1.5 1500kg 1250kg 1100kg 1000kg 800kg 700kg 600kg 500kg 400kg 175kg 670-1010mm
IEJ-2.0 2000kg 1500kg 1350kg 1200kg 1000kg 800kg 700kg 600kg 400kg 175kg 670-1010mm
IEJ-3.0 3000kg 2000kg 1750kg 1500kg 1250kg 1000kg 900kg 800kg 700kg 176kg 670-1010mm
IEJ-4.0  4000kg 3000kg 2750kg 2400kg 2000kg 1500kg 1250kg 1000kg 850kg 178kg 670-1010mm
