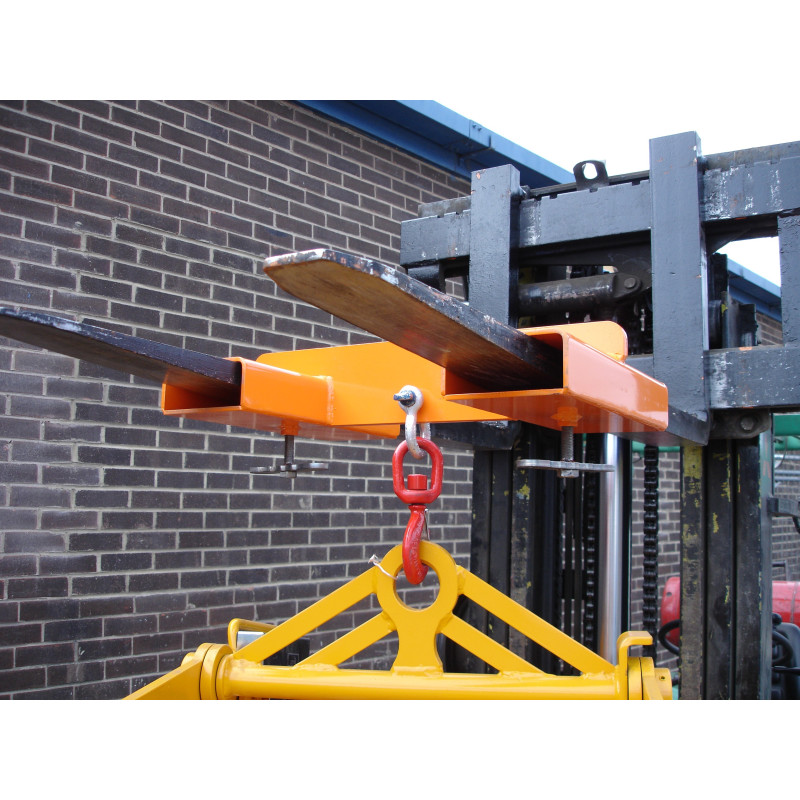

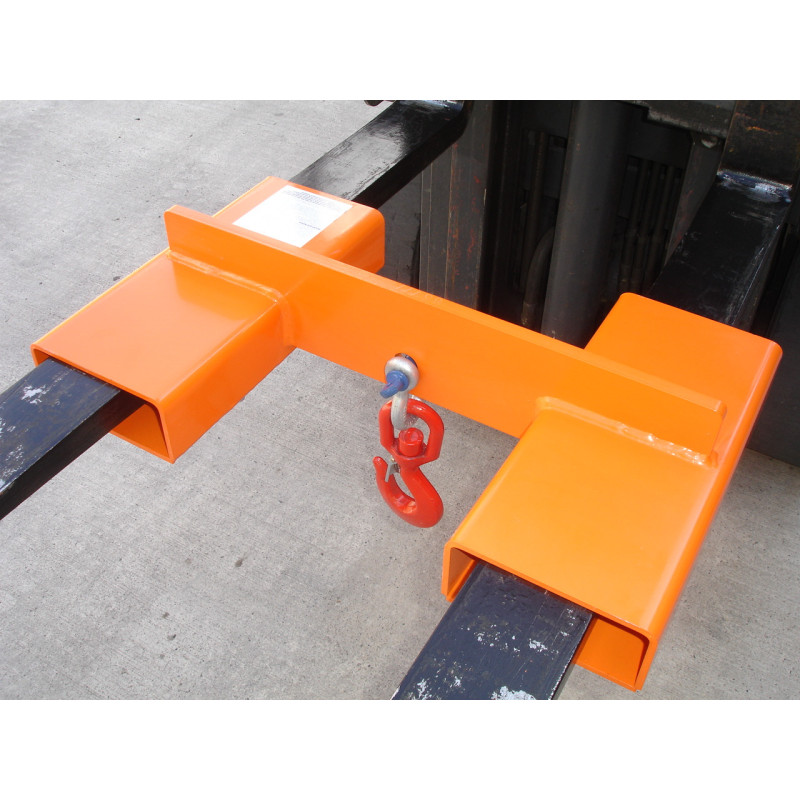

The Adjustable Fork Mounted Hook provides a quick and economical method of the lifting and positioning of unpalletised loads. Multiple lifting positions can be achieved by the correct positioning of the attachment along the fork blade.
Standard Features
Completely adjustable along the fork blade (except taper)
Supplied complete with single swivel hook and bow shackle
Maximum fork section 150mm x 50mm at 355mm centres
Zinc plated twist screws for safe attachment to truck
Painted bright orange for safety
Model | Capacity | Weight | Centre of Gravity |
IAH-1.0 | 1000kg | 16 | 125mm |
IAH-1.5 | 1500kg | 18 | 125mm |
IAH-2.0 | 2000kg | 20 | 125mm |
IAH-2.5 | 2500kg | 21 | 125mm |
IAH-3.0 | 3000kg | 24 | 125mm |
IAH-4.0 | 4000kg | 26 | 125mm |
IAH-5.0 | 5000kg | 29 | 125mm |
