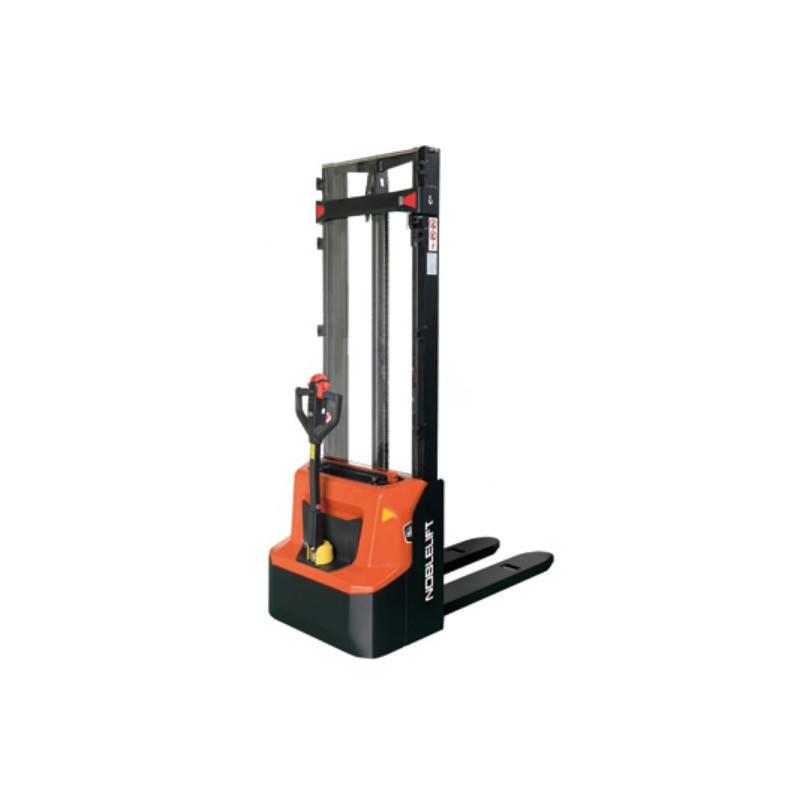

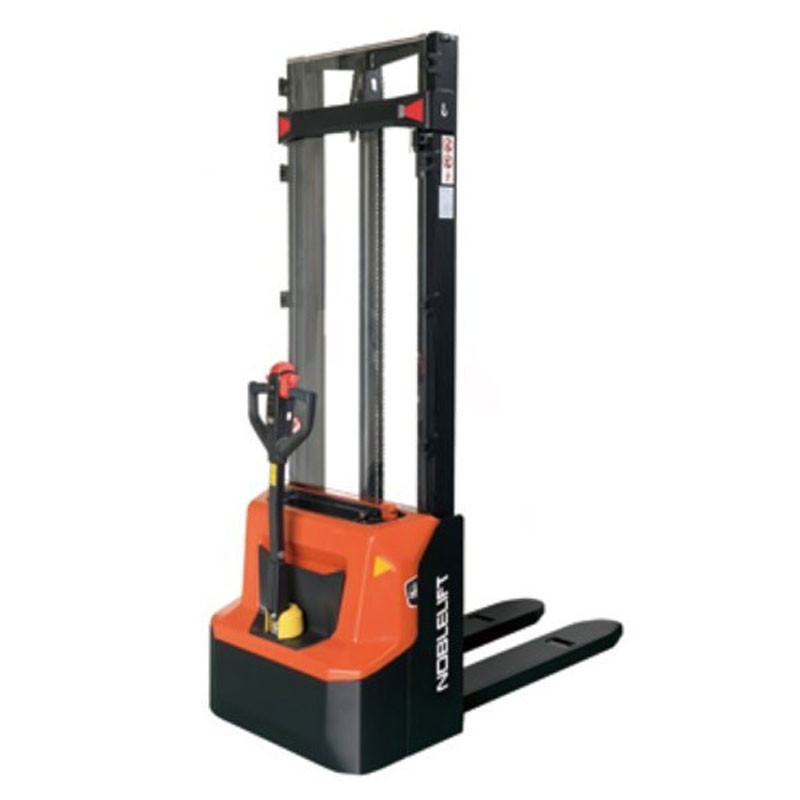

Standard Stacker PSE12B36 Fully Electric 3.6m Lift 1200kg
Price:
£3,795.00
VAT excluded
PSE12B36 Series Fully Powered Standard Stacker 1200kg, Lift height: up to 3.6m.
Must-have accessories
Shipping Costs
At checkout you'll define your exact delivery address.
Mainland England / Wales / Scotland Central Belt
£450.00
Collect from Milton Keynes
FREE
PSE12B36 Series Fully Powered Standard Stacker 1200kg, Lift height: up to 3.6m.
- Perfect for light-duty applications.
- Compact & light service weight
- High maneuverability
- 2x AGM Powered Batteries
- Integrated on-board 12A charger fitted with UK 3 pin Plug
- Ideal for use on mezzanines
Product Specifications
| Capacity | 1200kg |
|---|---|
| Type Of Operation | Pedestrian |
| Load Centre | 600mm |
| Net Weight | 620kg |
| Axle Loading (Laden - Front/Rear) | 580 / 1240kg |
| Axle Loading (Unladen - Front/Rear) | 450 / 170kg |
| Width Across Forks | 252mm - 800mm |
| Fork Length | 1150mm |
| Lowered Mast Height | 2290mm |
| Extended Mast Height | 4037mm |
| Overall Length | 1710mm |
| Overall Width | 800mm |
| Ground Clearance | 24mm |
| Turning Radius | 1350mm |
| Steer Wheel Diameter and axle size | Ø210 x 70mm |
| Load Roller Single | Ø84 x 93mm |
| Lift Speed (Laden/Unladen) | 0.11 / 0.16 m/s |
| Lowering Speed (Laden/Unladen) | 0.13 / 0.11m/s |
| Caster Wheel | Ø100 x 50mm |
| Height of Handle (from ground) | Drive Position 710mm |
| Battery Voltage / Capacity | 2x 12V/85Ah AGM |
| Fork Sleeve Dimensions | 60 x 180 x 1150mm |
| Lift Height | 3600mm |
| Wheel Material | Vulkollan |
Guides
PSE12B/12N Brochure
PSE12B Electric Stacker
