£3,895.00 Vat excl.

£4,674.00 Vat incl.

Quantity :

Reference : PSE12BSL36

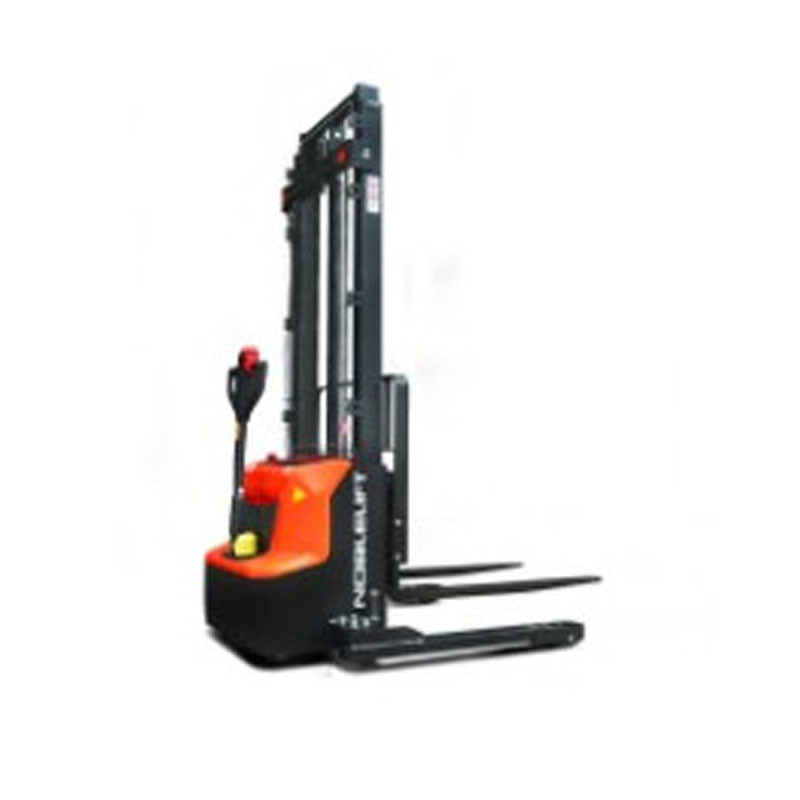

The PSE 12BSL is an economic straddle stacker with a rated capacity of 1200kg and maximum lifting height of 3.6M

The PSE 12BSL is an economic straddle stacker with a rated capacity of 1200kg and a maximum lifting height of 3.6M

The compact and light design is suitable for a variety of light-duty applications in the warehouse.

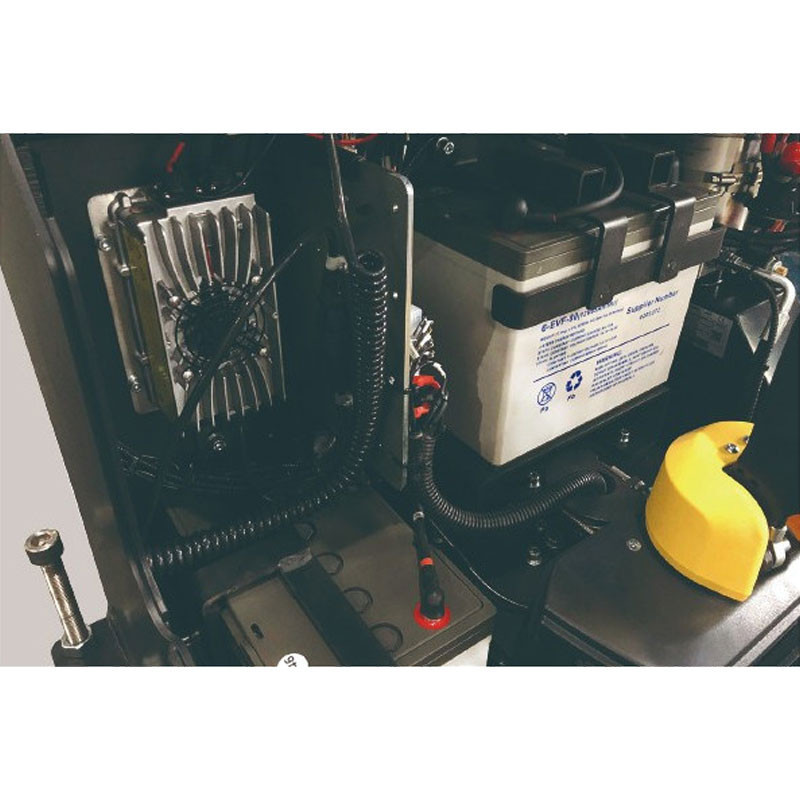

Built in charger with UK 3pin plug
Battery discharge indicator with automatic cut-off function for higher battery life

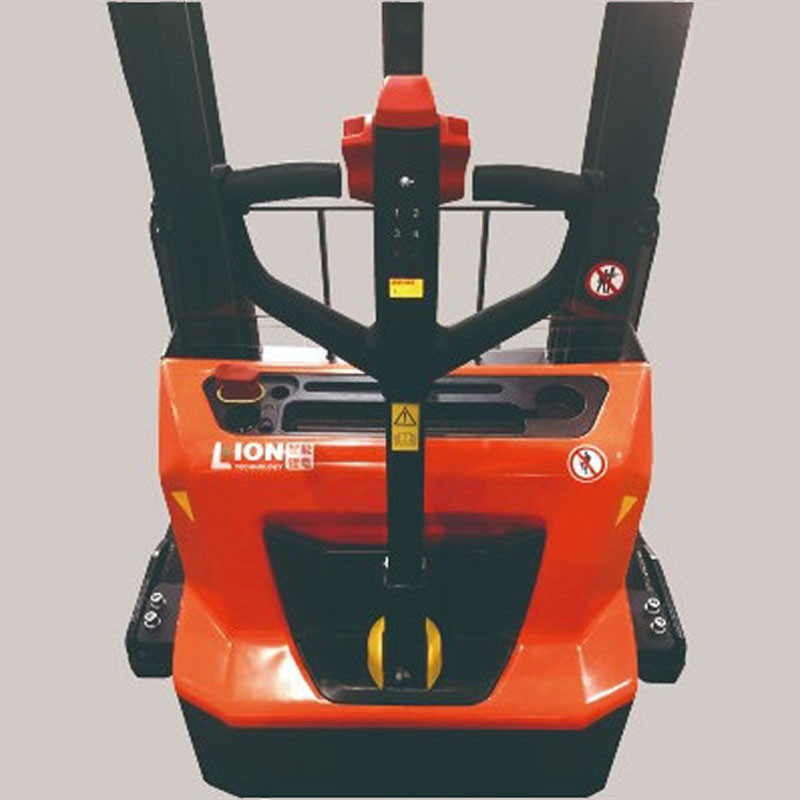

5 wheel design with central tiller for higher stability and perfect viewing
Lifting Capacity: 1200kg
Minimum Fork Height: 50mm
Fork Carriage Width: 845mm
Fork Length: 1150mm
Lift Height: 3600mm
Collapsed Height: 2290mm
Extended Height: 4100m (w/o Backrest), 4494mm (with)
Load centre: 600mm
Turning Radius: 1345mm
Weight minus battery: 760Kg

PSE12BSL36
Capacity	1200Kg
Drive	Electric
Type Of Operation	Pedestrian
Load Centre	600mm
Fork Dimensions	40x100mm
Fork Width	100mm
Width Across Forks	252-800mm
Fork Length	1150mm
Min. Fork Height	50mm
Max. Fork Height	3440mm
Lowered Mast Height	2290mm
Extended Mast Height	4100-4494mm
Overall Length	1790mm
Ground Clearance	40
Turning Radius	1345mm
Front Wheel Diameter	210mm
Rear Wheel Diameter	84mm
Lift Speed (Laden/Unladen)	110/160mm/s
Lowering Speed (Laden/Unladen)	130/110mm/s
Voltage	24V
Parking Brake	Electromagnetic
Caster Wheel	100x40mm
