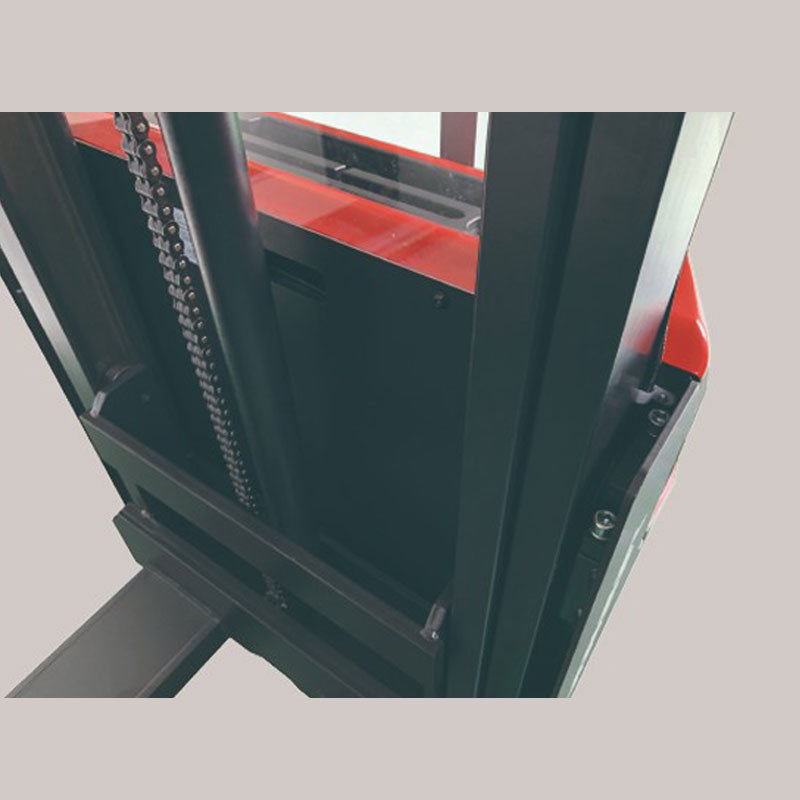

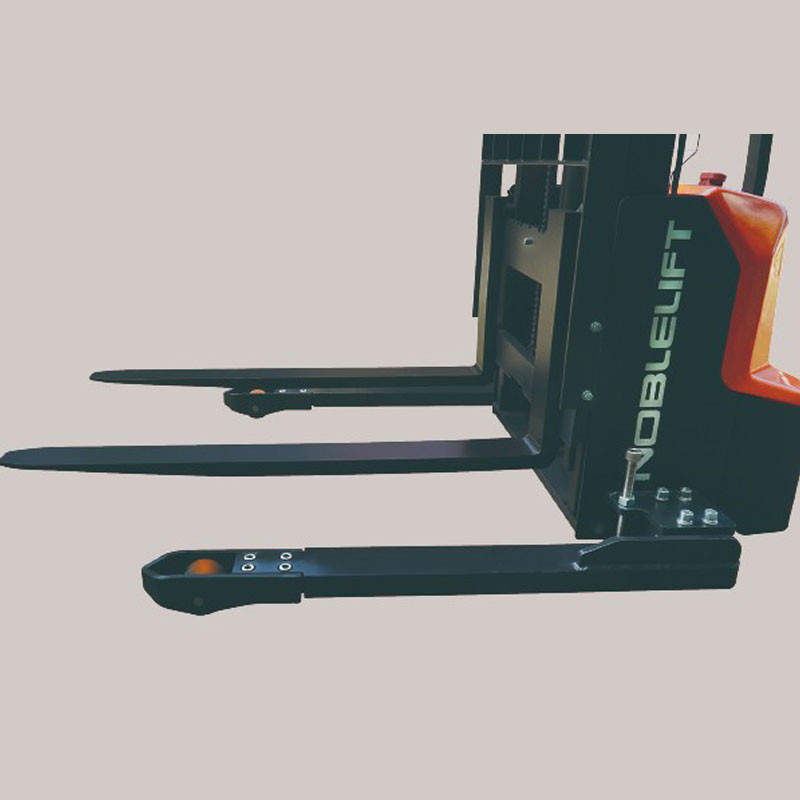

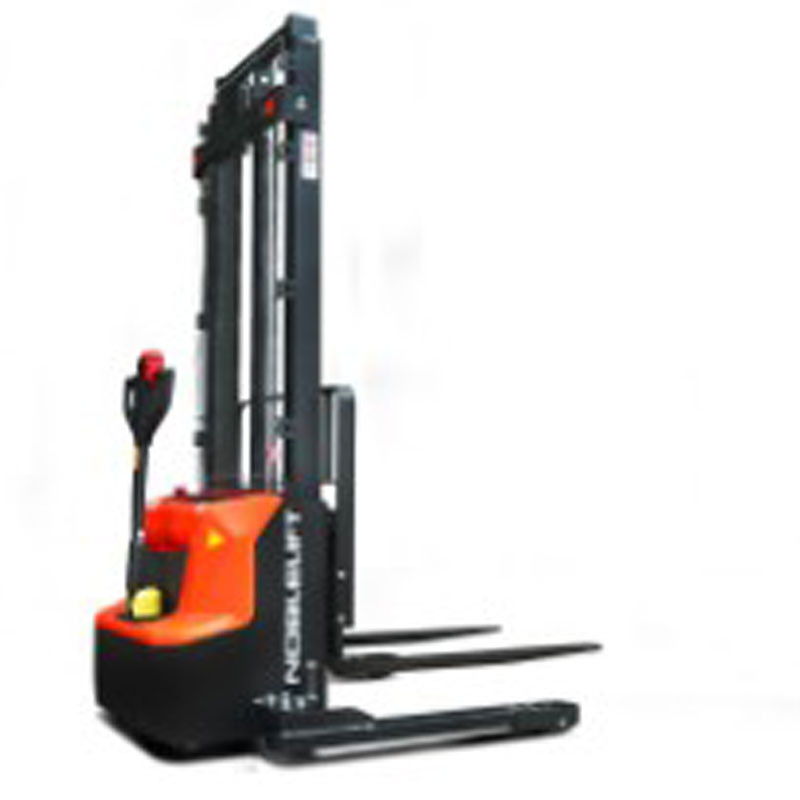

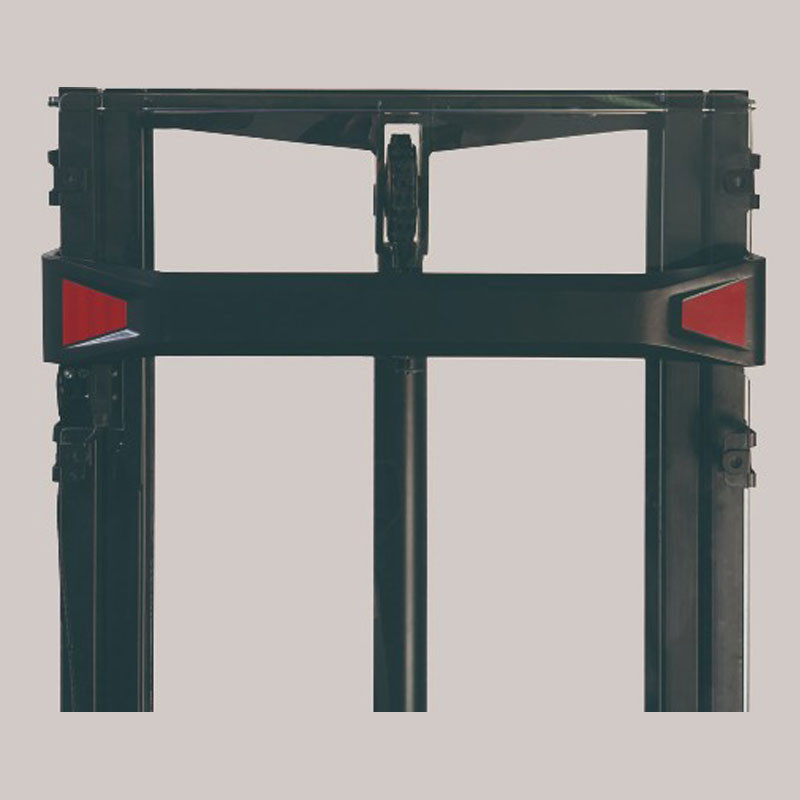

Straddle Stacker PSE 12BSL 2.9M Lift 1200KG
£3,695.00
Tax excluded
The PSE 12BSL is an economic straddle stacker with a rated capacity of 1200kg and maximum lifting height of 2.9M
Must-have accessories
The PSE 12BSL is an economic straddle stacker with a rated capacity of 1200kg and a maximum lifting height of 2.9M
The compact and light design is suitable for a variety of light-duty applications in the warehouse.

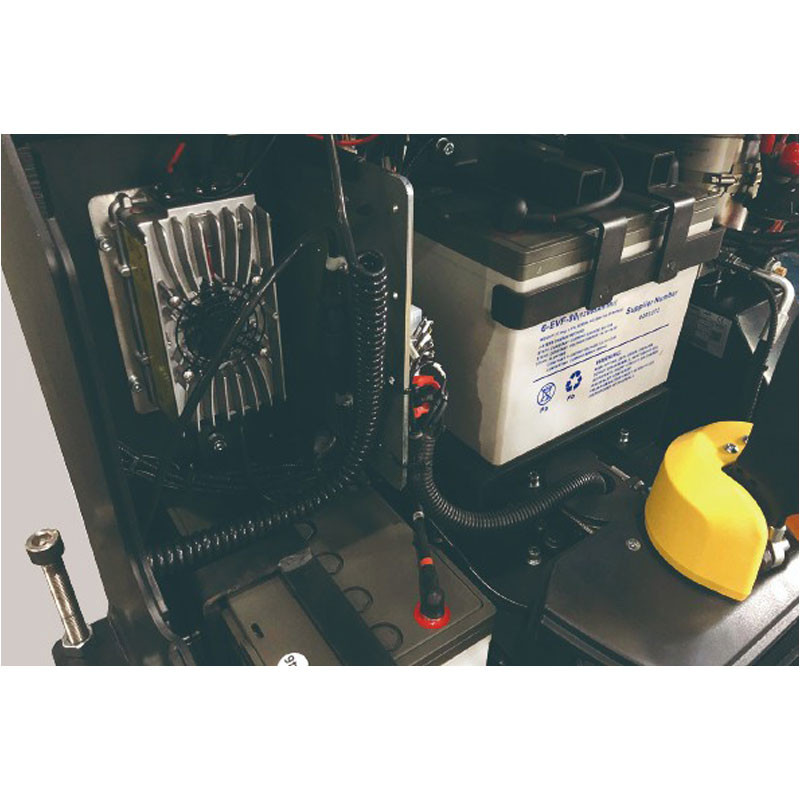

- Built in charger with UK 3pin plug
- Battery discharge indicator with automatic cut-off function for higher battery life

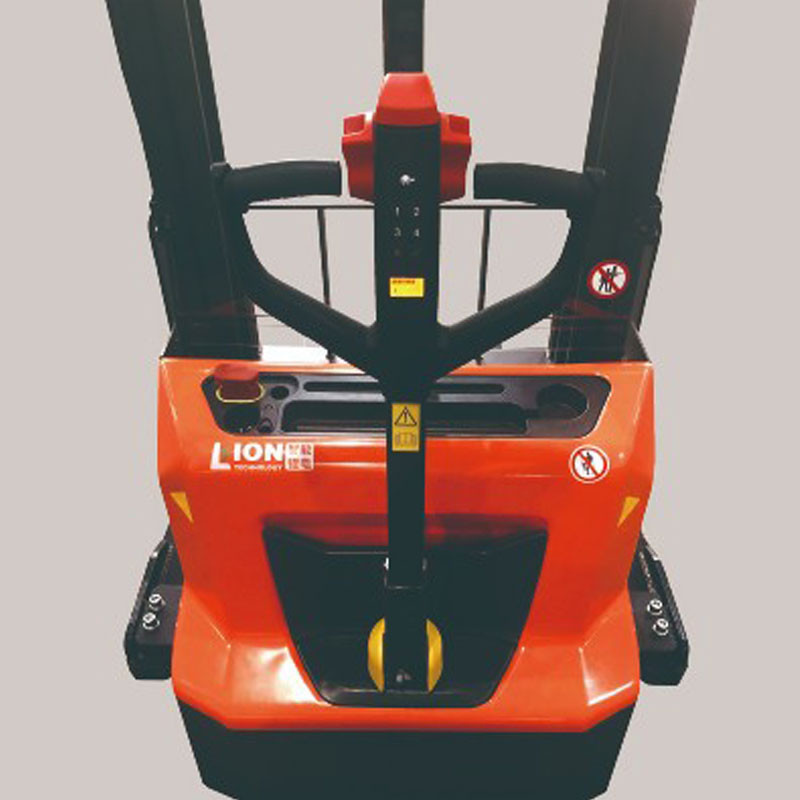

- 5 wheel design with central tiller for higher stability and perfect viewing
- Lifting Capacity: 1200kg
- Minimum Fork Height: 50mm
- Fork Carriage Width: 845mm
- Fork Length: 1150mm
- Lift Height: 2900mm
- Collapsed Height: 1940mm
- Extended Height: 3400m (w/o Backrest), 3794mm (with)
- Load centre: 600mm
- Turning Radius: 1345mm
- Weight minus battery: 730Kg
Product Specifications
| Capacity | 1200Kg |
|---|---|
| Drive | Electric |
| Type Of Operation | Pedestrian |
| Fork Dimensions | 40x100mm |
| Fork Width | 100mm |
| Width Across Forks | 252-800mm |
| Fork Length | 1150mm |
| Min. Fork Height | 90mm |
| Max. Fork Height | 3440mm |
| Lowered Mast Height | 1940mm |
| Extended Mast Height | 3400-3794mm |
| Ground Clearance | 40 |
| Turning Radius | 1345mm |
| Lift Speed (Laden/Unladen) | 110/160mm/s |
| Lowering Speed (Laden/Unladen) | 130/110mm/s |
| Parking Brake | Electromagnetic |
| Caster Wheel | 100x40mm |
