Standard Stacker SPM1525 Semi Electric 2.5M Lift 1500KG
Price:
£2,395.00
VAT excluded

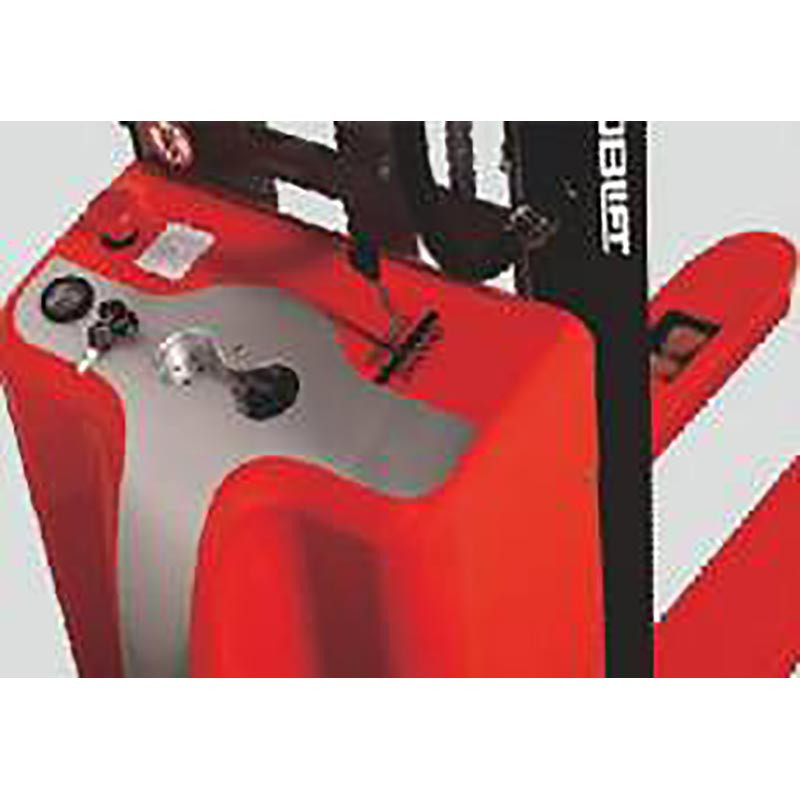

The SPM1525 is a strong, sturdy and robust Semi Electric Stacker with a classical design.
Durable and easily serviceable with a built in battery charger.
It has a sturdy and reliable mast made of rolled U-profiles and hard chrome plated pistons, adjustable lifting chain and powerful lift motor of 1.5KW.
Must-have accessories
Shipping Costs
At checkout you'll define your exact delivery address
Central England & South Wales
£95.00
England East, North-East, Outer London, Rural Wales
£120.00
Central London & Other City Centres
£145.00
England South-West, North-West / Wales / Scottish Central Belt
£155.00
Scottish Highlands
£210.00
Collect from
Milton Keynes
FREE
The SPM1525 is a strong, sturdy and robust Semi Electric Stacker with a classical design. Durable and easily serviceable with a built in battery charger.
It has a sturdy and reliable mast made of rolled U-profiles and hard chrome plated pistons, adjustable lifting chain and powerful lift motor of 1.5KW.
Industrial Quality Equipment used across many industries. Designed and manufactured to meet the highest demand applications industries have to offer.
Easy to operate, the fluent outline makes it stand out from traditional stackers. Made of high quality steel to ensure stability and strength.
Wheels Chassis:
Wheels: PU
Product Specifications
| Capacity | 1500Kg |
|---|---|
| Drive | Manual |
| Type Of Operation | Pedestrian |
| Load Centre | 600mm |
| Net Weight | 516kg |
| Overall Fork Width O.D. | 640mm |
| Min. Fork Height | 85mm |
| Lowered Mast Height | 1780mm |
| Extended Mast Height | 3020mm |
| Overall Length | 1725mm |
| Overall Width | 777mm |
| Turning Radius | 1400mm |
| Front Wheel Diameter | 180mm x 50mm |
| Rear Wheel Diameter | Ø74mm x 70mm |
| Lift Speed (Laden/Unladen) | 65mm / 100mm/s |
| Lowering Speed (Laden/Unladen) | 85mm / 70mm/s |
| Lift Motor | 1.5Kw |
| Parking Brake | Manual |
| Height of Handle (from ground) | 1156mm (Vertical) |
| Min Aisle Width (1000 x 1200 pallet) | 2255mm |
| Min Aisle Width (800mm x 1200mm Pallet) | 2212mm |
| Battery Voltage / Capacity | 12v / 150Ah |
| Fork Sleeve Dimensions | 60x180x1100mm |
| Lift Height | 2500mm |
| Track Width Front | 680 |
| Track Width Rear | 390mm / 490mm |
| Wheelbase | 1160mm |
| Wheel Material | Polyurethane |
