CBD-20 Electric Pallet Truck 2000kg
£1,495.00
£1,345.50
VAT excluded

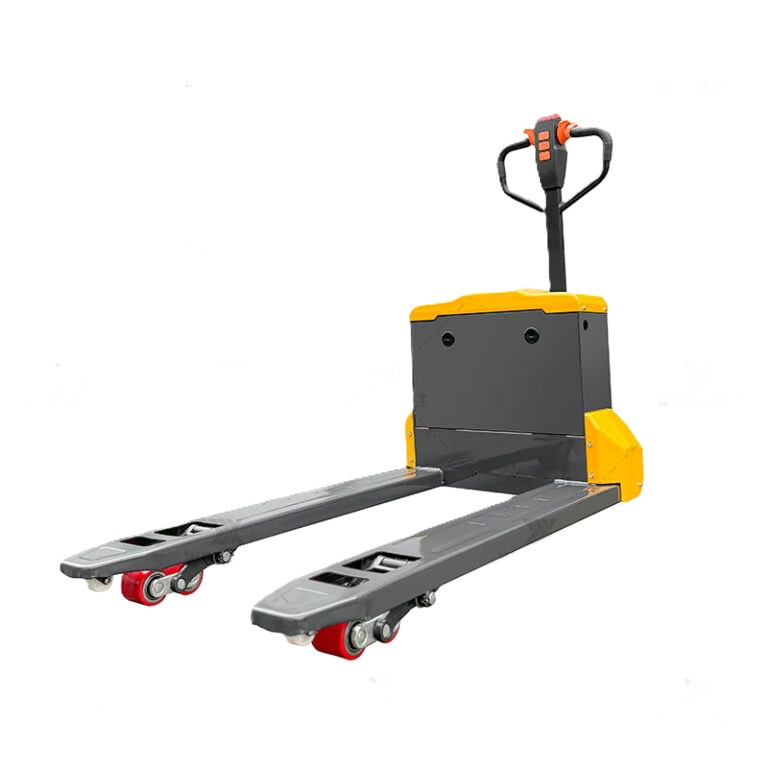

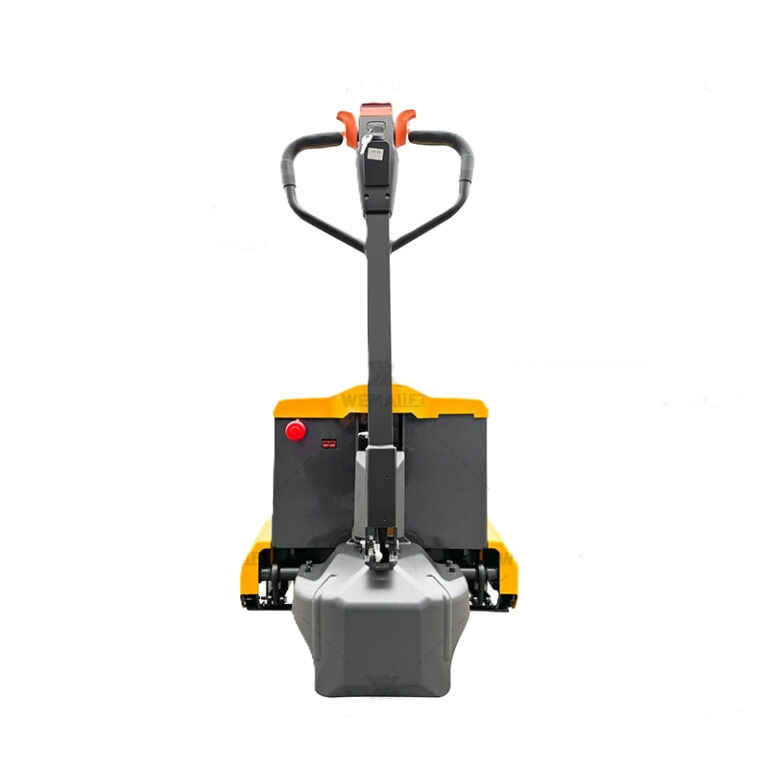

Fully Electric Pallet Truck with a 2000kg load capacity. 1150mm x 540mm fork dimensions.
Fitted with a 24v lithium battery, Multi functional handle that can switch between fast and slow modes, Steel material cover, avoid damage during operation
Proof Load Certificate
No Certificate
Fully Electric Pallet Truck with a 2000kg load capacity. 1150mm x 540mm fork dimensions.
Fitted with a 24v lithium battery, Multi functional handle that can switch between fast and slow modes, Steel material cover, avoid damage during operation
Please note:
These machines are not waterproof or IP rated.
These are designed to be used within a warehouse type environment on smooth surfaces.
They should not be stored or operated in damp or wet conditions – as this will void the warranty.
Product Specifications
| Capacity | 2000Kg |
|---|---|
| Overall Fork Width O.D. | 160mm |
| Fork Length | 1150mm |
| Min. Fork Height | 75mm |
| Max. Fork Height | 190mm |
| Overall Length | 1650mm |
| Overall Width | 550mm |
| Steer Wheel Diameter and axle size | Ø210x70mm |
| Load Roller Tandem | Ø80x70mm |
| Lift Motor | 0.8KW |
| Drive Motor Rated output / DC motor | 0.75KW |
| Battery Voltage / Capacity | 24V / 15Ah |
Guides
CBD-20.CBD-C20 MANUAL
CBD-20.CBD-C20 User Manual
