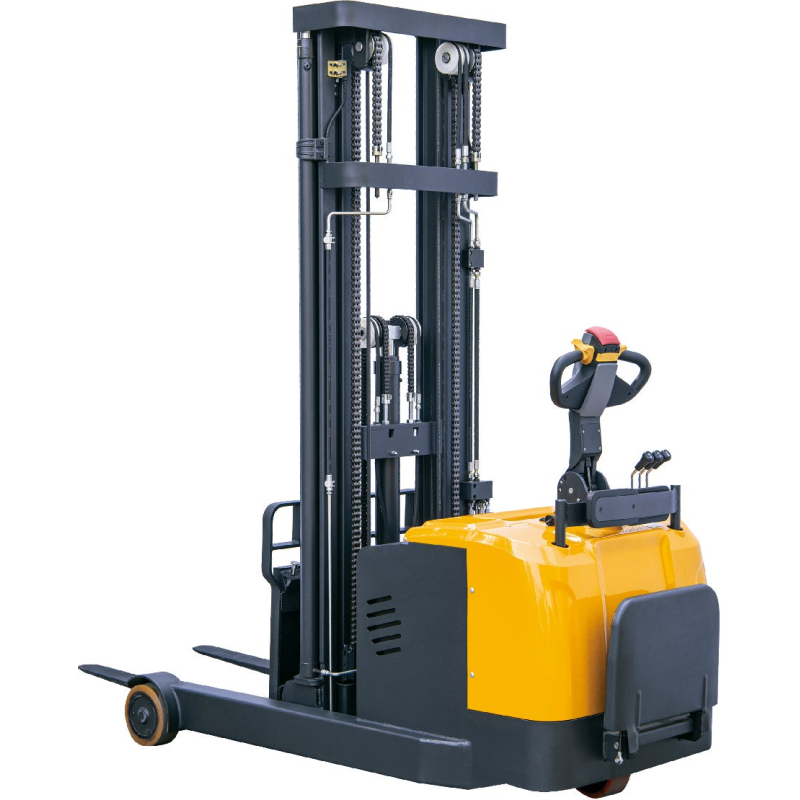

CDD-Q 6m Reach Stacker (Ride-on Model) 2000kg (No Side Shift)
Price:
£9,495.00
VAT excluded
CDD-Q 6m Reach Stacker (Ride-on Model) 2000kg (No Side Shift)
Small turning radius.
AC drive motor, maintenance free design.
Vertical drive wheel. Electromagnetic brake.
With power steering system (EPS).
Shipping Costs
At checkout you'll define your exact delivery address.
Mainland England / Wales / Scotland Central Belt
£450.00
Collect from Milton Keynes
FREE
CDD-Q 6m Reach Stacker (Ride-on Model) 2000kg (No Side Shift)
Small turning radius.
AC drive motor, maintenance free design.
Vertical drive wheel. Electromagnetic brake.
With power steering system (EPS).
Product Specifications
| Capacity | 2000Kg |
|---|---|
| Load Centre | 600mm |
| Size of Forks | 1150mm x 100mm x 35mm |
| Min. Fork Height | 100mm |
| Max. Fork Height | 6000mm |
| Lowered Mast Height | 2560mm |
| Extended Mast Height | 6740mm |
| Overall Length | 2630mm |
| Overall Width | 1045mm |
| Ground Clearance | 50mm |
| Turning Radius | 2530mm |
| Lift Speed (Laden/Unladen) | 0.085/0.122m/s |
| Lift Motor | 3KW |
| Drive Motor Rated output / DC motor | 2.2KW |
| Reach Distance | 550mm |
| Min Aisle Width (800mm x 1200mm Pallet) | 3550mm /3600mm |
| Battery Voltage / Capacity | 24V / 240Ah |
