Pallet Truck Warehouse

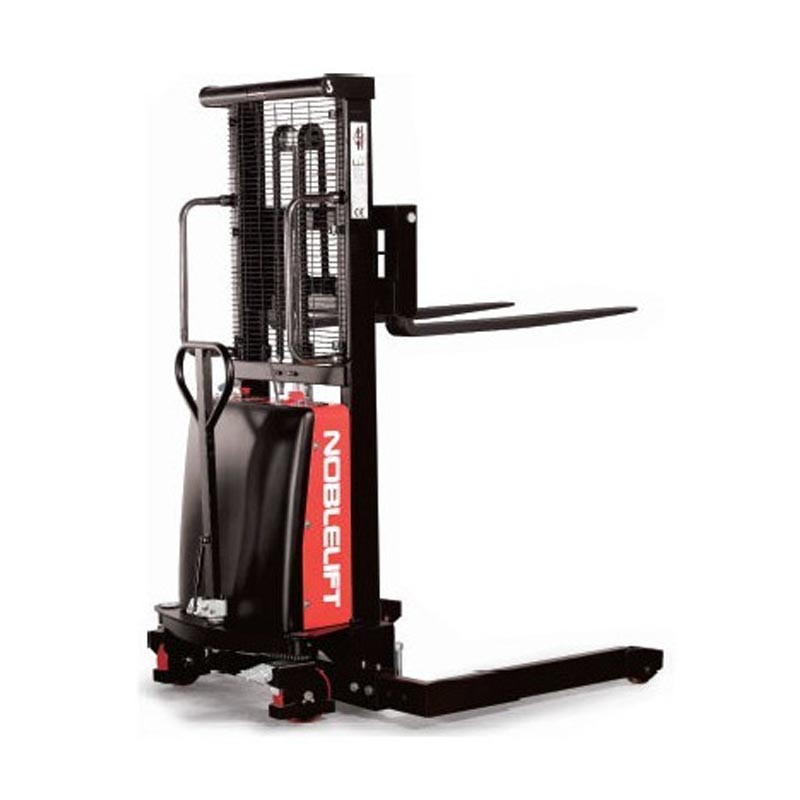

Semi Electric Stacker SPN1035A - Adjustable Straddle Legs

Semi Electric Stacker SPN1035A - Adjustable Straddle Legs

£2,095.00Vat excl.
2,514.00  Vat incl.

SPN1035A-ES

The SPN1035A has adjustable base legs for lifting loads, skids, racks, and objects with forks that adjust from side to side. It has a load capacity of 1000kg and a lifting height of 3500mm.

More details

The SPN1035A has adjustable base legs for lifting loads, skids, racks, and objects with forks that adjust from side to side to accommodate skid widths. It has a load capacity of 1000kg and a lifting height of 3500mm.

Main Features:-

    • Adjustable base legs for lifting loads, skids, racks and objects.
    • Capacity 1000kg
    • Lifting Height 3500mm
    • Forks adjust from side to side to accomodate skid widths.
    • Adjustable forks lower to the minimum height of 2 1/8".
    • Fork Length 1070mm
    • Fork Width 100mm
    • Sturdy and reliable mast made of rolled U-profiles. Hard chrome plated piston. Adjustable lifting chain. Powerful lift motor 2.1HP
    • Integrated 150AH maintenance free battery supplies strong power to effect frequent lifting task. An integrated charger facilitates easy and reliable charging of the integral battery.

Full details can be downloaded in PDF format.


    SPN1035A-ES
    Capacity 1000kg
    Drive Manual
    Type Of Operation Semi Electric
    Load Centre 600mm
    Fork Dimensions 1070mm x 100mm
    Fork Length 1070mm
    Min. Fork Height 54mm
    Max. Fork Height 3500mm
    Lowered Mast Height 2275mm
    Overall Length 1689mm
    Overall Width 1170mm - 1475mm
    Base Legs I.D. 965mm - 1270mm
    Base Legs O.D. 1170mm - 1475mm
    Front Wheel Diameter 128mm
    Rear Wheel Diameter 180mm
    Wheel Type 2 Rigid, 2 Swivel
    Voltage 12v
    Parking Brake Manual
